उत्पत्ति के प्लेस:
चीन
ब्रांड नाम:
carterberg
प्रमाणन:
IATF16949
मॉडल संख्या:
सीबी-वीएफ-एसपी

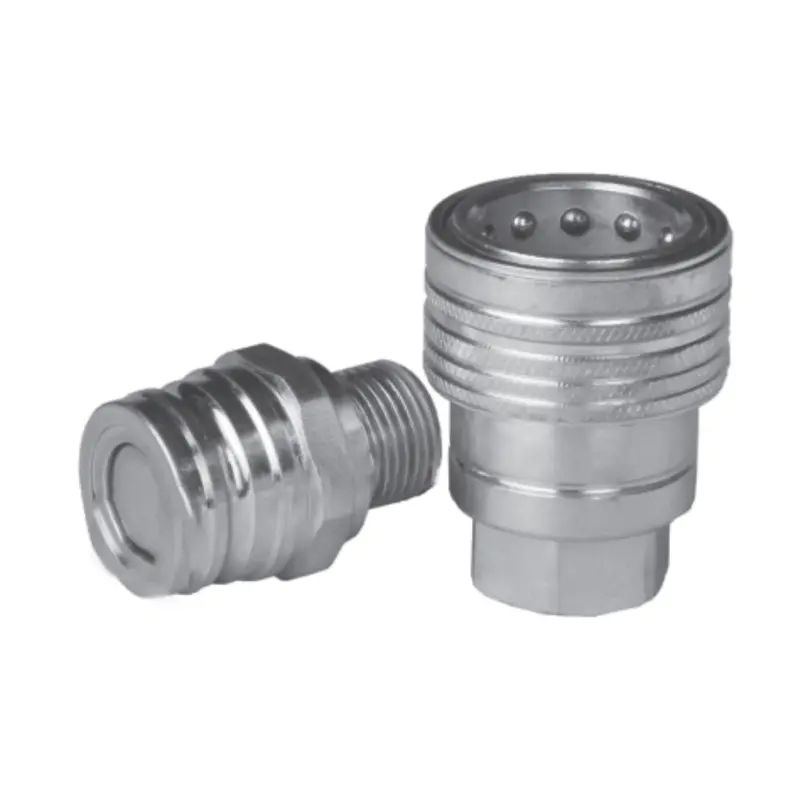

CB-VF Close type hydraulic quick coupling ( steel )
● Poppet valves avallable to prevent uncoupled leakage.
● Poppet valves open automatically when coupled, within rated working pressure, to keep the flow expeditely.
● Critical parts are hardened for durability.
● Dependable ball-locking mechanism holds the mating halves to gether.
● Socket and plug are precision machined from solid bar stock.
● Compatible with FASTER VF Series, GROMELLE Q-9000 Series.
The CB-VF Series brings to the industry a proven design for use on construction equipment, forestry equipment, oil tools, Oil equipment, steel mill machinery, and other demanding hydraulic applications.
| BODY SIZE | Rated Pressure (PSI) | Rated Flow (GPM) | Temperature range(std seals) | Standard seal material |
| 1/2" | 3000 | 12 | -20℃~+100℃ | NBR |
Female (Socket)
| Body Size | PARTNO. | L | L1 | L2 | L3 | D1 | D2 | CH1 | CH2 | T |
| 1/2" | CB-VF-SP | 88 | 55.5 | 48 | 15.3 | 44 | 29 | 27 | 32 | G1/4 NPT1/4 |
